Main Features

Satisfies control performance requirements for most mid-to-high-end applications.

• Low-power inverters (≤15kW) adopt plastic housing construction.
• Starting Torque: 786G: 150% rated torque at 0.5Hz (PG-free flux vector control) 786P: 150% rated torque at 0.5Hz (PG-free flux vector control)、
• Speed Range: 1:200 (PG-free flux vector control)
• Steady-state Speed Accuracy: ＜±0.5% of rated synchronous speed (PG-free flux vector control)Auto-tuning and torque boost functions

Supported Optional Interfaces & Expansion Capability

• Optional RS485 serial communication interface (Standard Modbus Protocol)
• Remote operator keypad

Comprehensive Protection Functions & High Reliability

• Overvoltage and overcurrent stall prevention under all operating conditions (acceleration, deceleration, constant speed).
• Complete protection mechanisms: overload, overcurrent, overvoltage, short circuit, ground fault, stall, overheat, etc.
• Fast current limiting function to avoid overcurrent alarms and extend the fault-free operating time of the inverter.
• Excellent torque response ＜10ms, effectively suppressing various motor disturbances.
• Overload test and 48-hour high-temperature burn-in test.

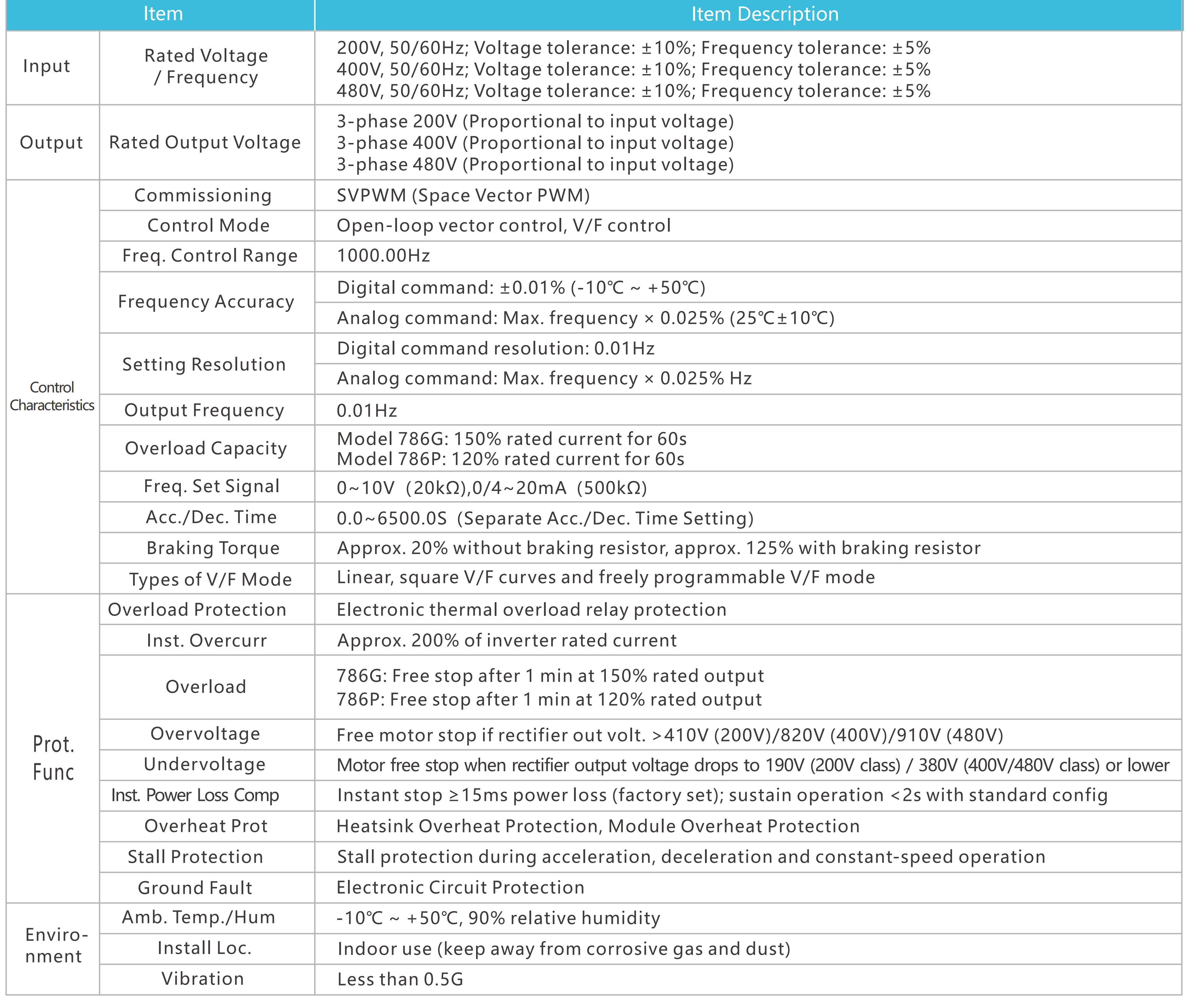

Technical Parameters

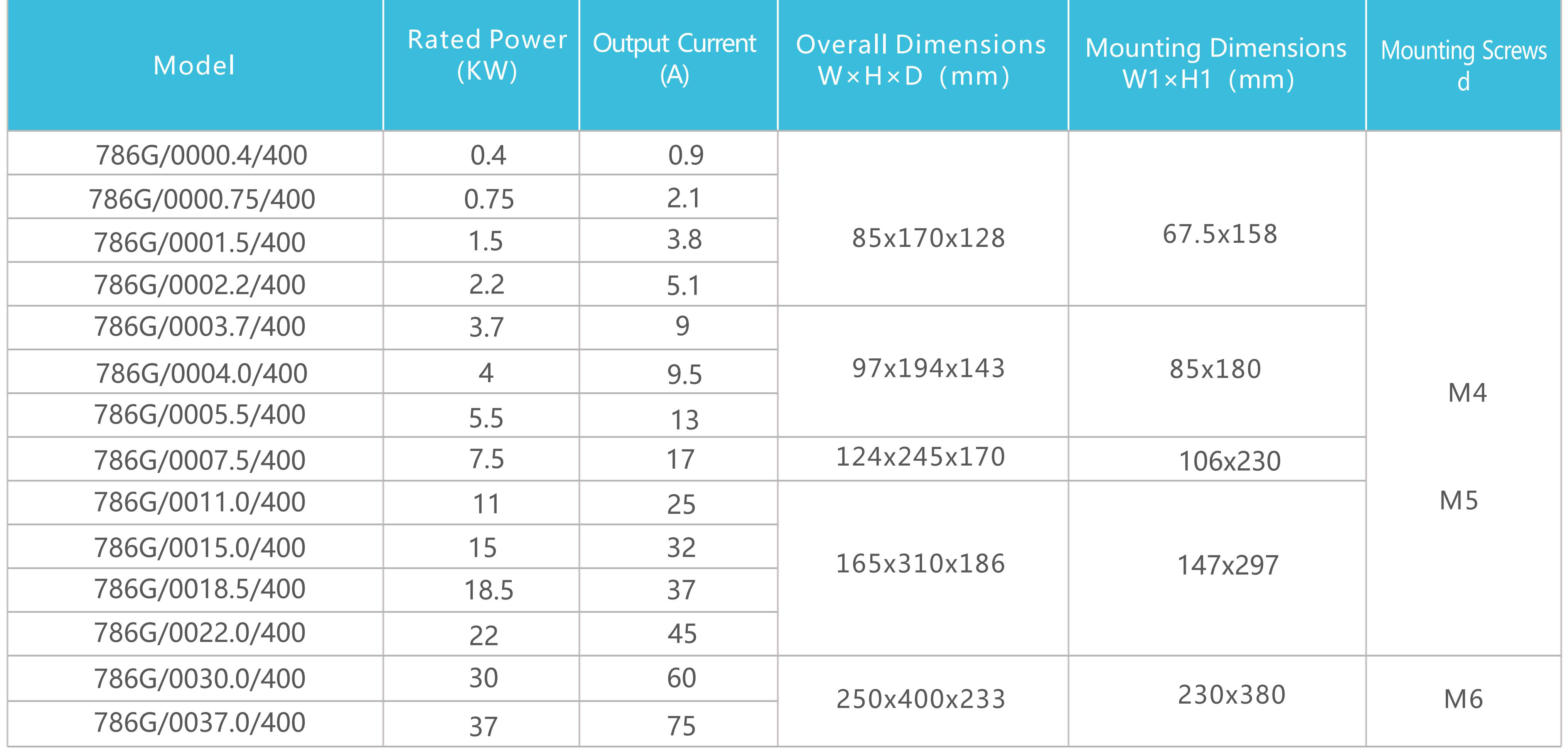

Dimensions
