Main Features
Excellent motor control performance
■High-performance dual-core DSP chip, 125μs real-time current loop cycle, high-precision speed and torque control
■Built-in positioning, interpolation and motion planning modules supported; positioning control and master-slave position synchronization control available
■High-performance vector control delivers high-precision flux vector control; open/closed-loop vector control achieves industry-leading performance.
Powerful network communication capability
■Standard RS485 serial port (Modbus protocol)
■Optional external communication modules: Profibus, Profinet,DeviceNet, EtherCAT, EtherNet/IP, CANbus (CANopen), Modbus-TCP
Compatible with various motors and encoder feedbacks
■Supports induction motors, asynchronous servo motors and PMSM servos
■Supports high-performance open/closed-loop vector control and V/F control
■Standard: 1 incremental encoder feedback channel
■Supports 2nd incremental encoder feedback expansion
■Supports absolute encoder feedback (SSI, EnDat, Tamagawa, etc.)
■Supports high-speed pulse input and frequency division output
Abundant functional modules & debugging software
■Multifunctional configurable I/O terminals with built-in flexible function modules to meet diverse industrial application requirements.
■Powerful PC debugging software with Chinese & English bilingual support

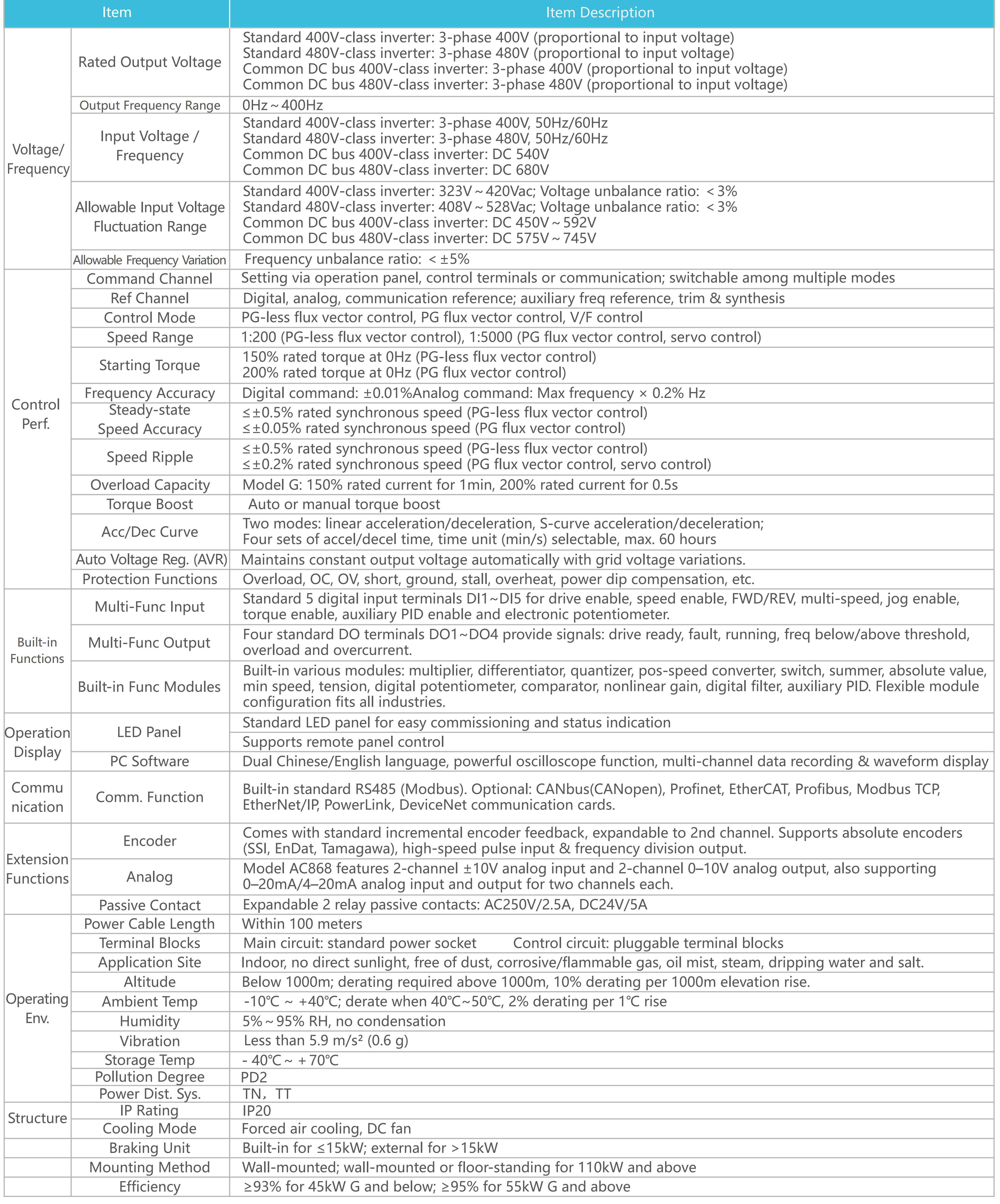

Technical Parameters

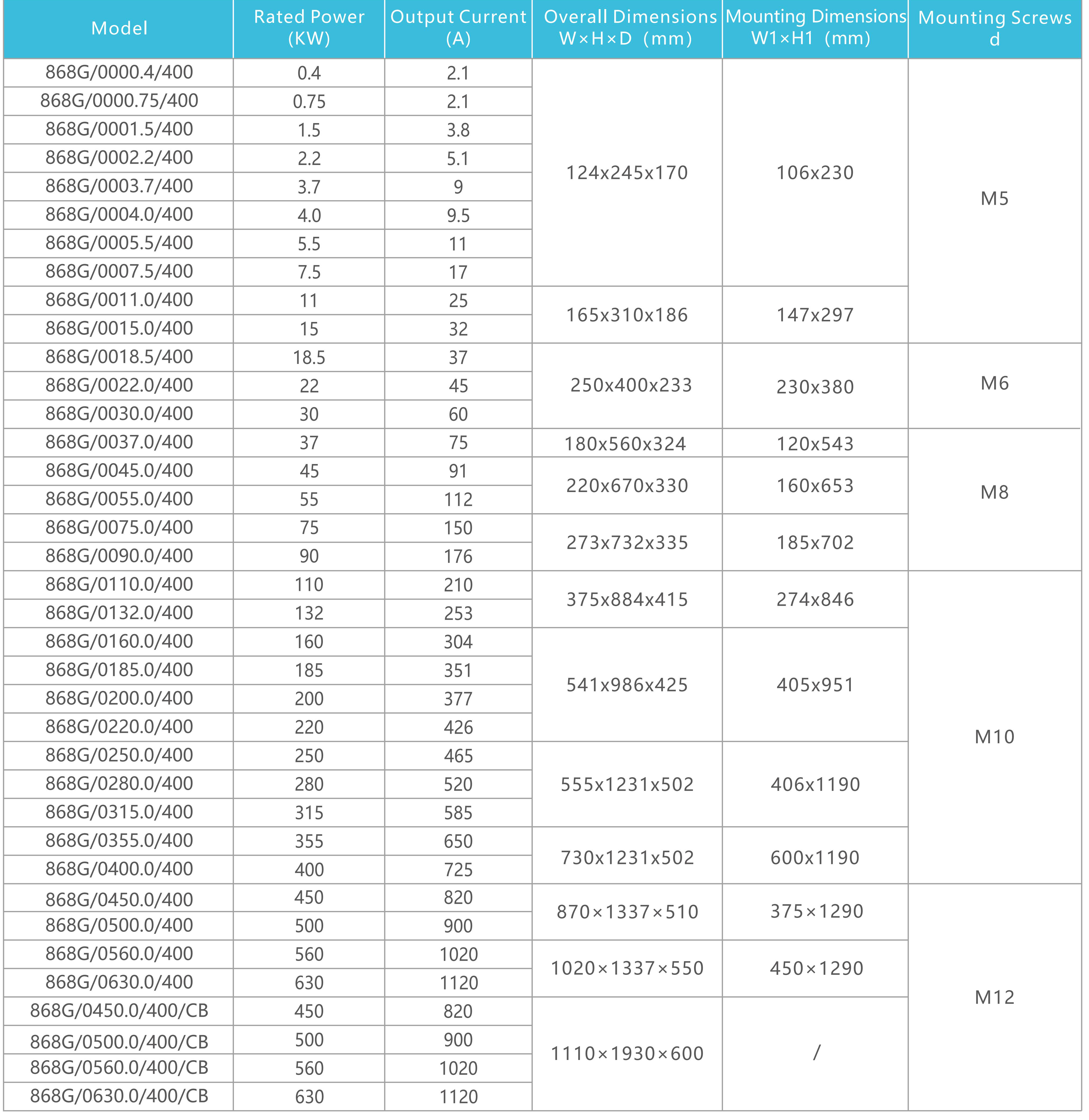

Dimensions
